Overview of ArkFlow Manifold Systems

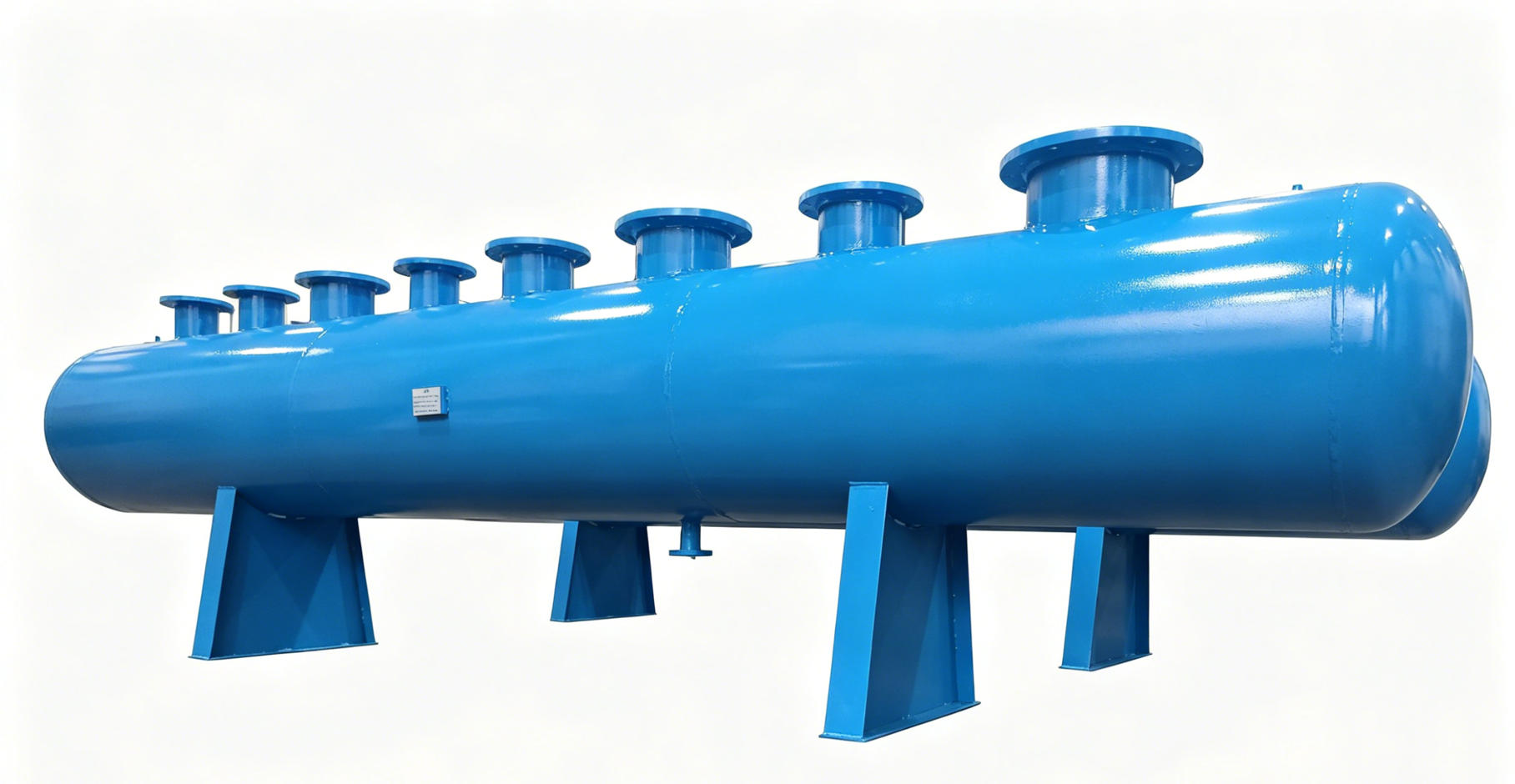

The ArkFlow Water Manifold is an essential fluid distribution and collection assembly designed for large-scale hydronic systems. By combining a Distributor (Supply) and a Collector (Return) into a synchronized unit, it serves as the “nerve center” of a building’s thermal or industrial cooling network. Whether utilized in boiler rooms, central air conditioning plants, or industrial process cooling, the ArkFlow Manifold ensures that every branch circuit receives the precise flow rate required to meet its thermal load, while effectively gathering return water for efficient recirculation.
Engineering Design & Working Logic
In complex piping environments, using excessive tees and crosses leads to chaotic layouts and significant hydraulic friction. The ArkFlow Manifold simplifies this by utilizing a high-volume cylinder that acts as a buffer and distribution header.
-
The Distributor: Receives the primary hot or chilled water and partitions it into several sub-branches. This ensures balanced pressure across the system and allows operators to isolate specific zones without affecting the entire facility.
-
The Collector: Aggregates return water from various circuits. By centralizing the return flow, the system can more accurately monitor the delta-T (temperature difference), which is critical for optimizing pump speeds and overall energy efficiency.
Quality & Safety Features
At Wuxi Ark, we prioritize long-term operational reliability. Our manifolds are fabricated following the strict 05K232 design code.
-
Material Integrity: We use premium carbon steel or stainless steel with certified wall thicknesses that withstand continuous industrial pressure cycles.
-
Optimized Interfaces: Unlike standard headers, our units feature optimized placement for thermometers and pressure gauges. This prevents “blind spots” in data and ensures that the readings reflect the actual state of the fluid.
-
Advanced Flange Matching: We offer specialized butterfly valve flanges or standard flat welding flanges. This precision matching increases the contact surface area between the manifold and the valve, drastically reducing the risk of leaks and structural fatigue.
-
Maintenance-Friendly Layout: The clear, linear arrangement of branches allows for rapid identification of piping routes, making routine maintenance and troubleshooting significantly faster compared to traditional piping.
Applications
The ArkFlow Manifold is widely deployed in:
-
Central HVAC Systems: Managing chilled water loops in commercial towers.
-
Industrial Cooling: Distributing process water for machinery and data center cooling.
-
Hot Water & Boiler Plants: Organizing supply and return headers for district heating.
