Overview of ArkSoft Water Softening Solutions
The ArkSoft Automatic Water Softener is a cornerstone for industrial facility protection, specifically designed to eliminate “hard water” challenges. By combining high-performance ion exchange resins with world-class control valves, Wuxi Ark provides a reliable solution for cooling towers, high-pressure boilers, and industrial process water. Hard water is the primary cause of mineral scaling in heat exchangers and piping, leading to catastrophic energy loss and equipment failure. Our system ensures your infrastructure remains efficient, significantly reducing chemical costs and maintenance downtime.
Technical Working Principle: The Ion Exchange Process
The core of the ArkSoft system is the Sodium-cycle Ion Exchange. When hard water passes through the food-grade resin bed inside the pressure vessel, the hardness ions (calcium and magnesium) are chemically attracted to the resin beads. In exchange, the resin releases harmless sodium ions into the water stream.
Once the resin reaches its saturation point, the system initiates an automated Regeneration Cycle:
-
Backwash: Loosens the resin bed and flushes out any trapped silt or sediment.
-
Brine Suction & Slow Rinse: A concentrated NaCl solution is drawn through the resin, stripping away the calcium and magnesium and restoring the resin’s softening capacity.
-
Fast Rinse: Removes excess brine from the tank to ensure the output water meets quality standards.
-
Brine Refill: Automatically prepares the salt tank for the next regeneration cycle.
Engineered for Diverse Industrial Needs
Wuxi Ark offers several system architectures to match your specific operational demands:
-

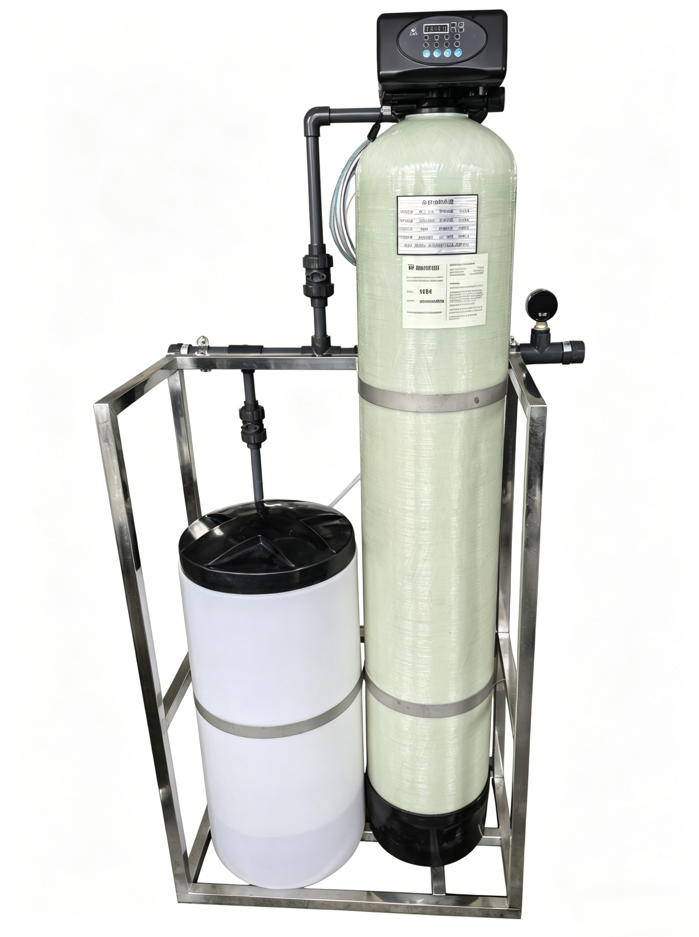

Single Tank Systems: Ideal for applications with periodic water demand or where a short interruption during regeneration is acceptable.
-

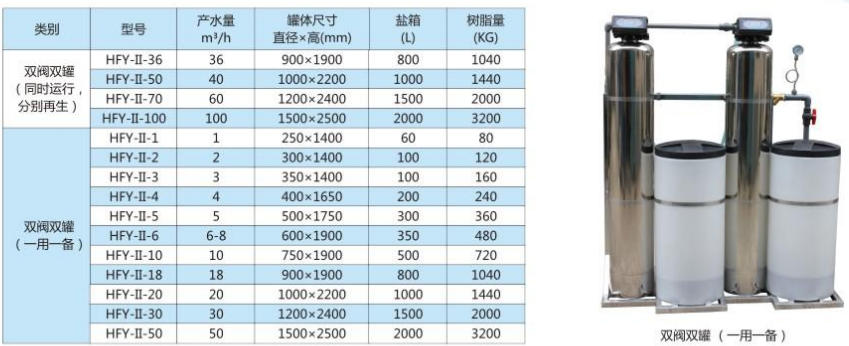

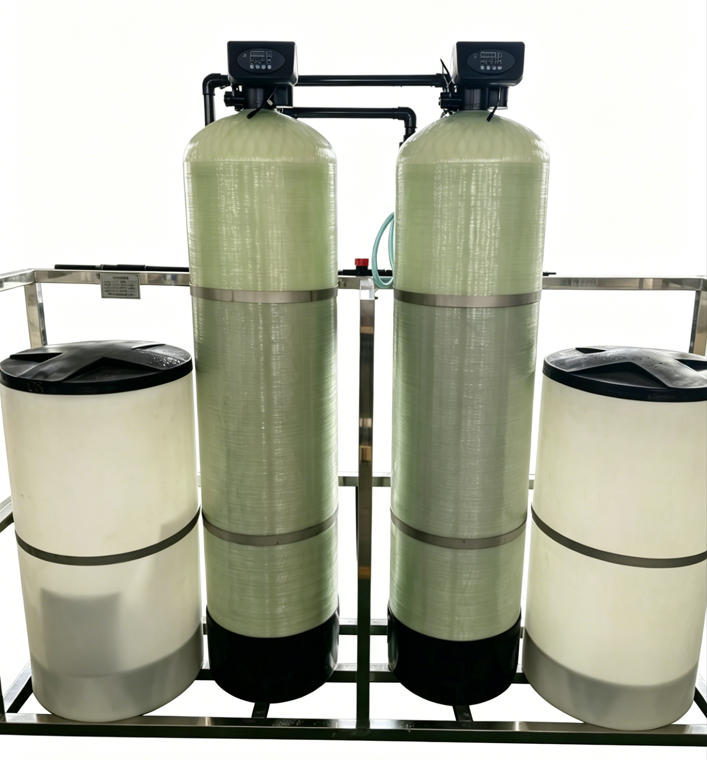

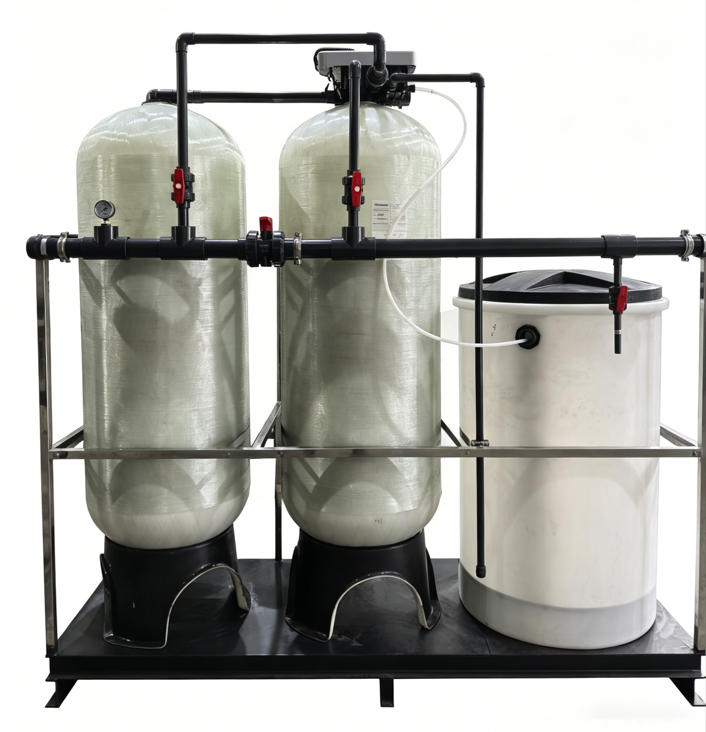

Duplex Systems (One-Duty-One-Standby): Ensures 24-hour uninterrupted soft water. One tank remains online while the other undergoes regeneration or stays in standby mode.
-
Parallel Multi-Tank Systems: Designed for massive peak flow requirements, where multiple tanks run simultaneously and regenerate sequentially.
-
Valve Selection (Multi-port vs. Diaphragm): While multi-port valves are perfect for standard applications, we utilize advanced Diaphragm Valve Nest controllers for systems requiring a flow rate greater than 50T/h, overcoming the hydraulic limitations of traditional single-head valves.
Applications
-
Industrial Boilers & Heat Exchangers: Prevents scale that reduces thermal efficiency.
-
Textile & Dyeing: Ensures consistent color quality by eliminating mineral interference.
-
Food & Beverage: Provides high-purity water for processing and cleaning.
-
Central HVAC Systems: Extends the life of chillers and cooling loops in commercial buildings.
